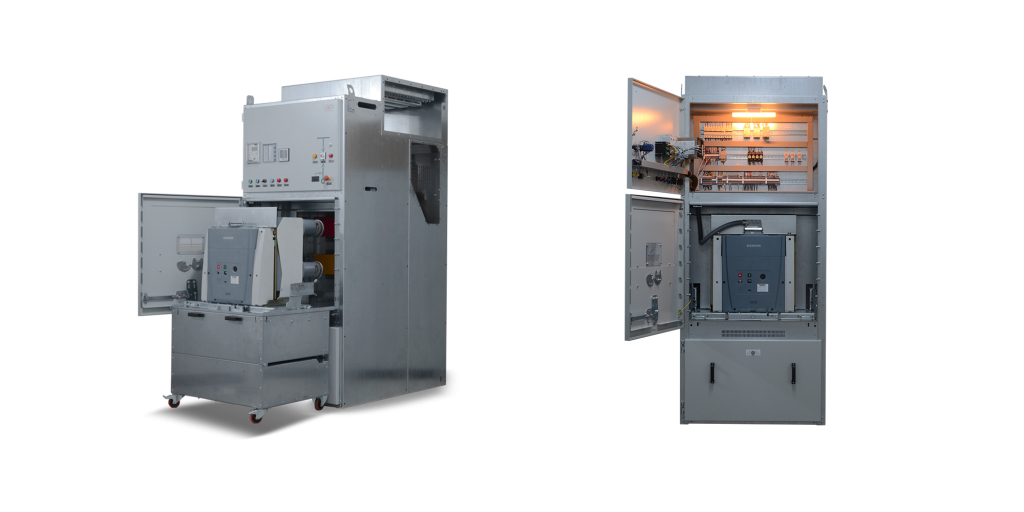

LMC Series Metal Clad Type Switchgears

LMC Series Metal Clad Type Switchgears

LMC series Metal Clad type air insulated switching and control units, manufactured 1 kv – 40.5 kV voltage level in accordance with IEC 62271-200 standards.

LMC series switchgears have high mechanical and electrical strength beside high operation safety, service continuity.

General Features

- 3 mm galvanized steel main frame
- Extensible from both side
- 4/5 accessible compartment
- High current capacity and high short circuit duration
- Electrical and mechanical interlocking system to avoid wrong operations
- Internal Arc tested design
- Easy and fast service opportunity with withdrawable type SF6 or Vacuum Circuit Breakers
- Type tested grounding systems are used
- Easy transportation and storage

Technical Features
Service Continuity LSC 2B
Insulation Air
Partition class PM
Internal Arc Classification IAC AFLR
Rated Voltage 1…40.5 kV
Rated power frequency withstand voltage up to 85 kV
Rated Lighting Impulse withstand voltage up to 185 kV
Rated Frequency 50/60 Hz
Rated Current 200…..4000 A
Rated short circuit curren 16/20/25/31,5/40 kA (1s/3s)
Rated internal arc current 16/20/25/31,5/40 kA (1s)
